WORKSWELL INDUSTRY SERIES

SMARTIS

INTELLIGENT THERMAL CAMERA

It is an all-in-one solution featuring a thermal camera, control unit, I/O card as well as a TCP/IP interface integrated within a single casing including an in-built webserver allowing for communication with a superior system including any PLC.

{fslinktext1}{fslinktext2}

False

MACHINE VISION
PROCESS CONTROL

AUTOMATION
METROLOGY

PYROMETRIC FUNCTIONS
TEMP. MEASUREMENT

FEATURES AND CONFIGURATION POSSIBILITIES

An in-built webserver for the camera setting and process visualisation
A TCP/IP interface for communication with a superior system
Digital inputs/outputs enabling triggering and alarm outputs
Temperature measurement up to 1500 °C

{fslinktext1}{fslinktext2}

False

The Workswell SMARTIS thermal camera can be operated and configured independently without the need for a direct connection to a PC or a superior unit. The thermal camera is offered in resolutions of 336 x 256 px and 640 x 512 px. A LWIR (Long Wave InfraRed) microbolometer with the spectral range of 7.5 – 13.5 μm has been used as an optical sensor.

{fslinktext1}{fslinktext2}

False

MEASUREMENT & CONNECTIVITY

The Workswell SMARTIS thermal camera is designed for process automation and machine vision but can also be used for continuous measurements of temperature in metrological and research applications.

The SMARTIS thermal camera has been designed for use in process automation so that it can autonomously control a separate smaller process however, could also become a part of the more extensive control system. Therefore, it has been equipped with a TCP/IP interface (Ethernet 100Mb/sec, RJ-45) which is complemented with digital inputs and analogue outputs (current loop 0-24 mA/12 V).

The measurement scope of the thermal camera ranges from -25 °C to 550 °C, optionally up to 1500 °C. Metrologic accuracy (±2% or ±2°C) and sensitivity (up to 50 mK, i.e. 0.05 °C) have stood as priorities in the thermal camera’s development.

BUILT-IN WEBSERVER

The Workswell SMARTIS thermal camera contains an built-in webserver allowing for easy setup of the thermal camera as well as measurement functions, inputs and outputs and image streaming options all to be controlled remotely.

{fslinktext1}{fslinktext2}

False

{fslinktext1}{fslinktext2}

False

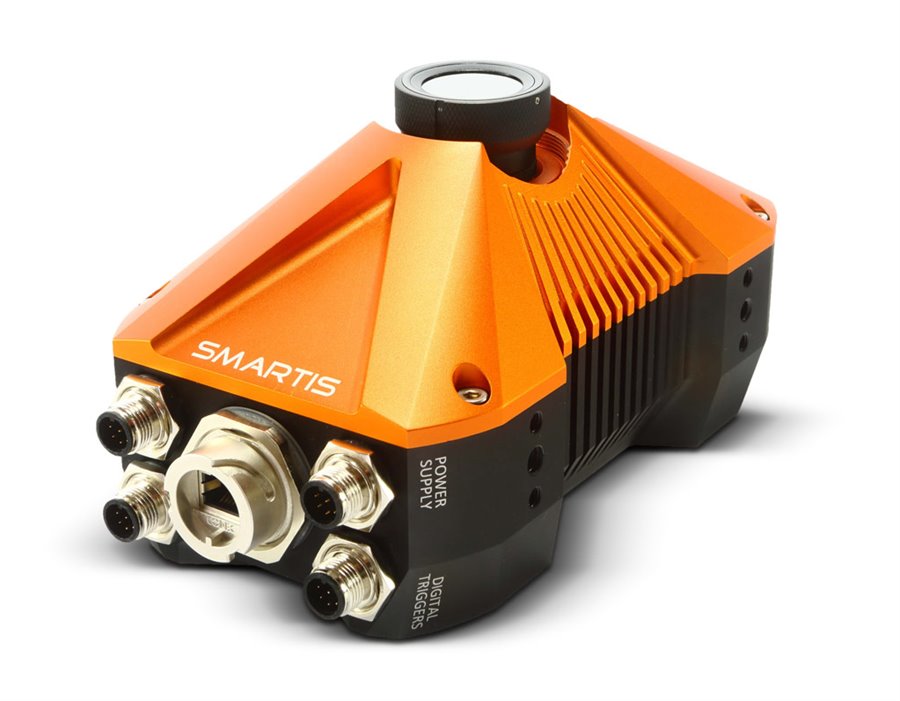

SMARTIS INTERFACES

4x digital input/output for trigger
Power supply
Ethernet TCP/IP with a RJ-45 connector for communication with PLC, but also with the in-built webserver
4x current output (0-24 mA/12 V current loop)
7x digital output (with an open collector)
